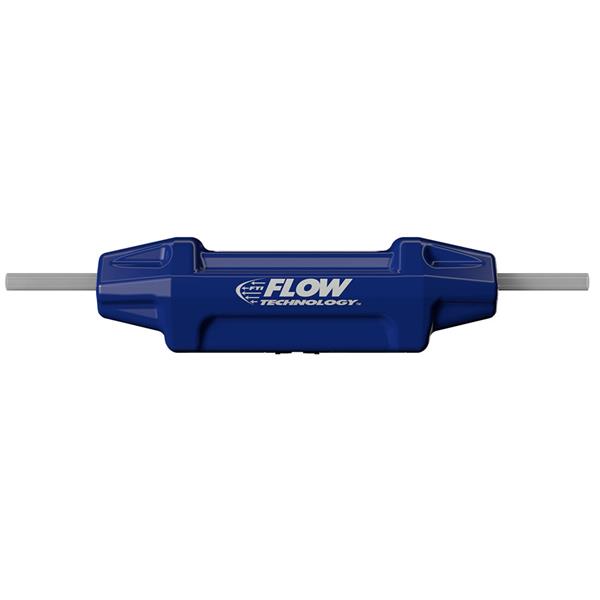

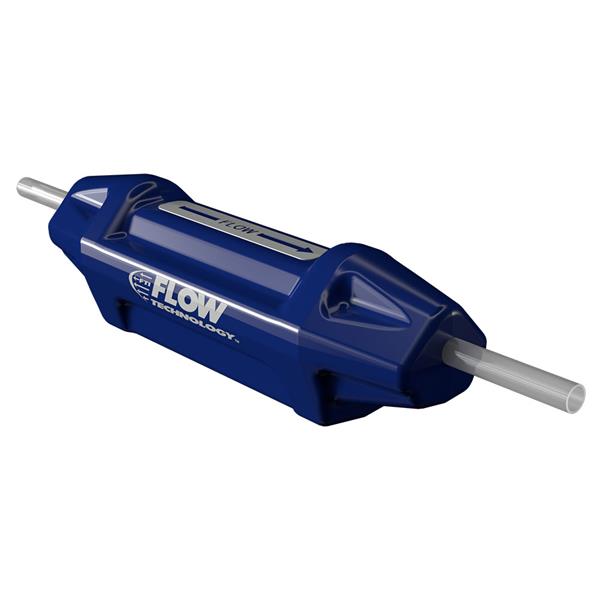

CLEARPATH Flow QIT In-Line Ultrasonic Flow Meter
The ClearPath | Flow™ Series in-line ultrasonic flow meter is expertly engineered for applications demanding a compact, low-profile sensor that delivers exceptional accuracy and reliability—all at a cost-effective price.
Featuring a straight, uninterrupted Biopharmaceutical-grade PFA tube, the flow path is free of any dead volume, ensuring optimal performance. Its lightweight, compact design simplifies integration with existing equipment. Due to its robust construction, the meter is highly resistant to a wide range of fluids, including corrosive substances.
Features
- No moving parts
- Low pressure drop
- High accuracy
- Straight PFA tube
- Compact lightweight design
- Robust design
Specifications
- Single-use or permanent installation
- Accuracy: 0.5% of reading plus zero stability
- Repeatability: <0.2% typical
- Line sizes (OD): 4, 6, 8 mm
- Tube material: PFA (USP Class VI, 21 CFR 177.1550)
- Max. pressure: 145 PSI
- Temperature range: +10°C to 60°C
- Outputs: 4-20mA, Scaled Frequency, Modbus
