CLEARPATH Flow QRT In-Line Ultrasonic Flow Meter
The ClearPath | Flow™ Series in-line ultrasonic flow meter is expertly engineered for applications demanding a compact, low-profile sensor that delivers exceptional accuracy and reliability—all at a cost-effective price.

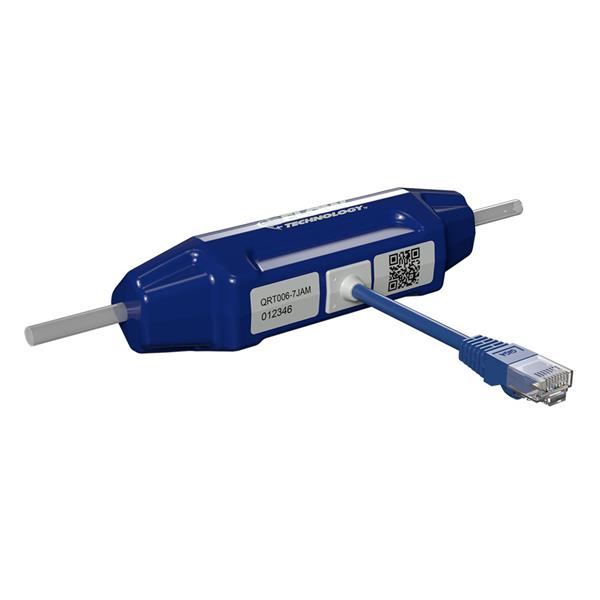

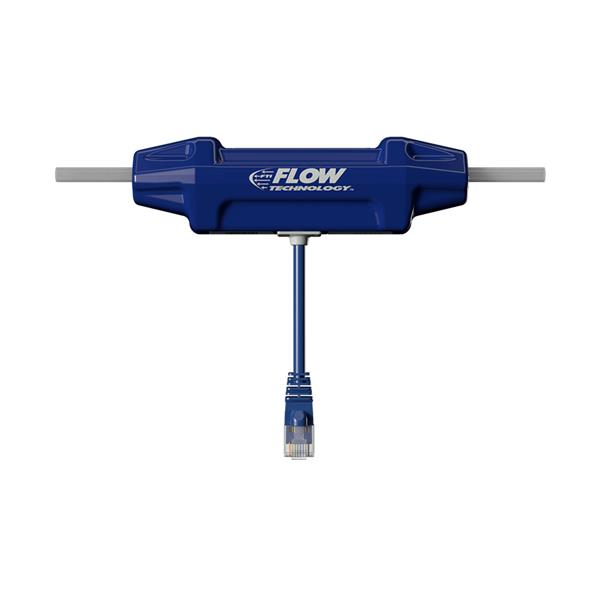

For single-use applications, the QRT Series can be used to interface with remote electronics (the QRE). The QRT is supplied with a 1-meter cable that connects directly to the QRE. The sensor is supplied fully configured with the meter’s individual calibration factors stored in the unit, and this information can be automatically uploaded to the QRE when the QRE detects that a new sensor has been connected.
Features
- No moving parts
- Low pressure drop
- High accuracy
- Straight PFA tube
- Compact lightweight design
- Robust design
Specifications
- Single-use or permanent installation
- Accuracy: 0.5% of reading plus zero stability
- Repeatability: <0.2% typical
- Line sizes (OD): 4, 6, 8 mm
- Tube material: PFA (USP Class VI, 21 CFR 177.1550)
- Max. pressure: 145 PSI
- Temperature range: +10°C to 60°C
- Outputs: 4-20mA, Scaled Frequency, Modbus
