METCAL Pt4-8000 4-Zone Preheaters, 380 V~ 50 Hz, 3F-4W 230 V~ 50 Hz, 1F

No Price Available

New

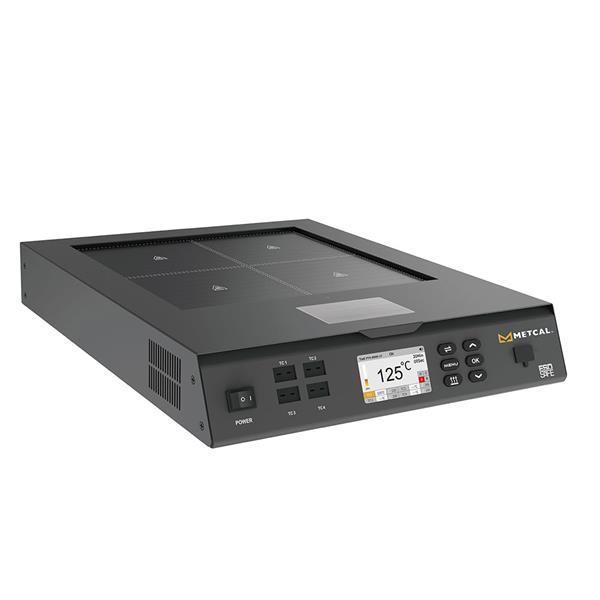

METCAL PT4-8000 4-Zone Preheaters, 380 V~ 50 Hz, 3F-4W 230 V~ 50 Hz, 1F
Code PT4-8000-21


Additional Info

PT4-8000 4-Zone Preheaters, 380 V~ 50 Hz, 3F-4W 230 V~ 50 Hz, 1F

Features
  • Comprehensive Four-Zone Thermal Management with Rapid Heating Efficiency
  • Advanced Temperature Control modes with External Thermocouple Integration
  • Customizable Heating Profiles for Consistent and Repeatable Results
  • Ergonomic Spring-Loaded PCB Stand with Broad Compatibility
  • User-Friendly Interface for Intuitive Operation
Back to results page
Click to view complete product details
Specifications
  • Input Voltage: 380 V~ 50 Hz, 3Φ-4W
    230 V~ 50 Hz, 1Φ
  • Power:4600 W
  • Controllable Temperature Range: 50 °C ~ 250 °C
  • 122 °F ~ 482 °F
  • Surface Temperature Range: 25 °C ~ 600 °C
    77 °F ~ 112 °F
  • Number of Heading area: 4
  • Heating Area:7.1" x 7.9"/ 180 x 200 mm
  • Total Heating Area:14.2” x 15.8”/360 x 400 mm
  • Temperature Sensors: 4 K‑Type
  • Temperature Units: °F / °C
  • Heating Power Display: 0% ~ 100%
  • Temperature Compensation: ±122 °F / ±50 °C
  • Real-Time Display: Temperature & Power
  • Zone Heating Control: On/Off
  • Profile Management: Learning/Import/Export
  • Heating Modes: Temperature/Power/Profile
  • Password Protection: yes
  • Sound Function: On/Off
  • Temperature Lock: On/Off
  •  Languages: English, French, German, Spanish, Chinese, Japanese, Korean
  • USB: Profile Import/Export Functionality
  • Display:2.3" / 58 mm Color
  • Operating Environment: 32 °F ~ 104 °F / 0 °C ~ 40 °C, <  85% RH
  • Dimensions (L x W x H):24.1” x 17.7” x 2.9”/ 612 x 450 x 73 mm
  • Weight (Main Unit): 20.2 lbs / 9.1 Kg
